ОБЩЕЕ ОПИСАНИЕ

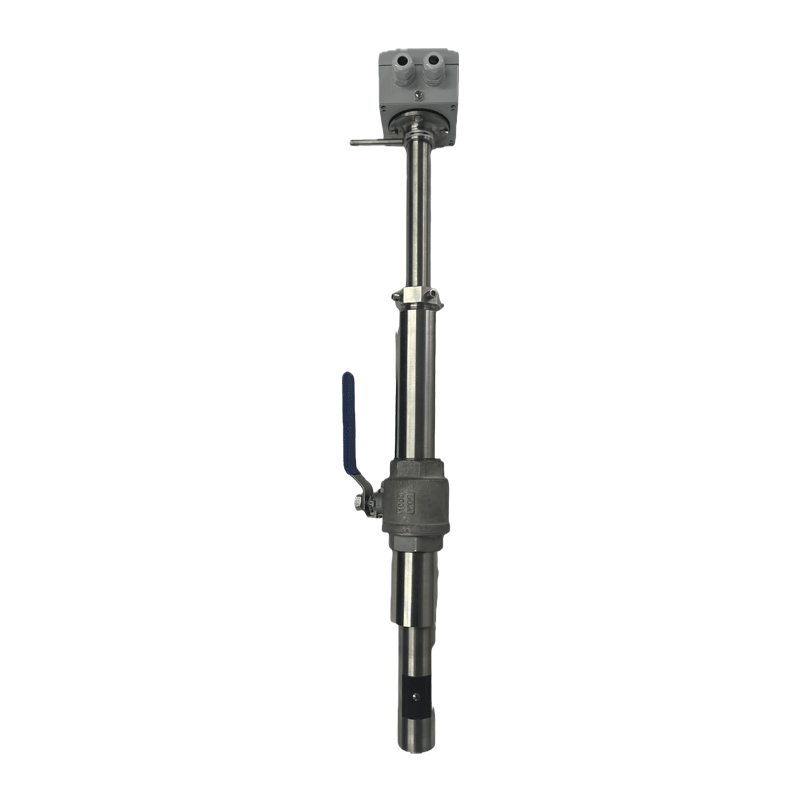

● Серия AEMG-I представляет собой электромагнитный расходомер вставного типа

● Он идеально подходит для токопроводящих жидкостей, широко используется для питьевой воды, сточных вод, продуктов питания и напитков, целлюлозно-бумажной промышленности и многих других промышленных жидкостей.

● Функция двухстороннего измерения.

● Отображение мгновенного и накопленного расхода.

● Встроенный или выносной дисплей.

MAIN SPECIFICATIONS

Size	DN300 to DN3000	Conductivity	More than 20μS/cm
Material	Protection tube: SS304 Mounting base: SS304 Screw: SS304 Ball valve: SS304	Electrode	316L Stainless Steel Titanium Tantalum Hastelloy B Hastelloy C Tungsten Carbide Platinum
Mounting	Compact or Remote	Temperature	-20 ~ +120℃
Process Connection	Thread Flange, DIN/ANSI/JIS	Accuracy	2.5% value of reading
Installation	Direct insert to the pipe Insert with Ball Valve	Ambient temp.	-20 ~ +60℃
Explosion	Ex db ib mb llC T6 Gb	Measuring range	0.5 - 3m/s
Ingress Protection	IP65 (standard) IP68 can be optional for sensor	Pressure range	0.6MPa - 1.6MPa

FLOW RANGE

The comparison table of pipe size, average velocity (m/s), volume flow (m3/h) for normal size

	0.5(m/s)	1.0(m/s)	1.5(m/s)	2.0(m/s)	2.5(m/s)	3.0(m/s)
300	127.2	254.4	381.6	508.8	636.0	763.2
350	173.1	346.2	519.3	692.4	865.5	1038.6
400	226.1	452.2	678.3	904.4	1130.5	1356.6
450	286.2	572.3	858.3	1144.6	1430.8	2574.9
500	353.3	706.5	1059.8	1413.2	1766.5	2119.8
600	508.7	1017.0	1526.0	2034.0	2544.0	3052.0
700	682.4	1385.0	2047.0	2730.0	3412.0	4094.0
800	904.3	1808.0	2713.0	3617.0	4522.0	5126.0
900	1145.0	2290.0	3435.0	4580.0	5725.0	6870.0
1000	1413.0	2826.0	4239.0	5652.0	7065.0	8478.0
1200	2034.0	4068.0	6102.0	8136.0	10170.0
1400	2770.0	5540.0	8310.0	11080.0	13850.0

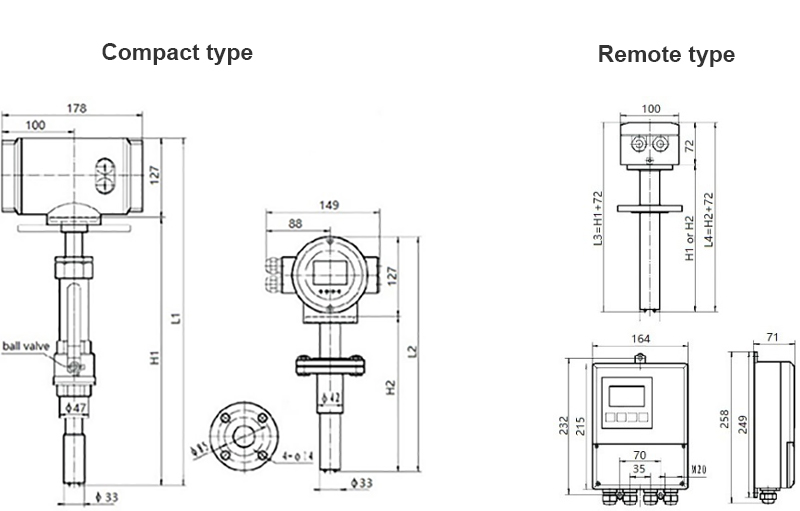

STANDARD SPECIFICATION


H1(mm)	L1(mm)	L3(mm)	Size
500	627	572	DN300 – DN1000
90	1027	972	DN1200 – DN3000

H2(mm)	L2(mm)	L4(mm)	Size
213	340	285	DN300 – DN1000
253	380	325	DN1200 – DN3000

MODEL SELECTION

AEMG -

□□□

□

□□

□

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

[1]	Nominal Diameter(mm)/ [inches]					[7]	Grounding and Lining Protection
	002		032 [1¼]	250 [10”]	900 [36”]		-0	Flange or body ground (10...2400)
	003		040 [1½]	300 [12”]	102 [40”]		-1	Earth ring (10...250)
	004		050 [2”]	350 [14”]	122 [48”]		-2	Ground electrode (25...2400)
	006		065 [2½]	400 [16”]	142 [56”]		-3	Inlet protection ring (50...300)
	008		080 [3”]	400 [16”]	162 [64”]	[8]	Max. Process Temperature
	010		100 [4”]	500 [20”]	182 [72”]		A	≤80℃ (All Linings)
	015 [½”]		125 [5”]	600 [24”]	202 [80”]		B	≤120℃ (PTFE、PFA、F46)
	020 [¾”]		150 [6”]	700 [28”]	222 [88”]		C	≤180℃ (PTFE、PFA)
	025[1’’]		200 [8”]	800 [32”]	242 [96”]	[9]	Configuration - sensor/transmitter
							C	Compact (10...1000)
[2]	Device Type						R	Remote (with 10m cable)
	F	Flange				[10]	Environmental Protection Class
	I	Insertion					5	IP65
	W	Wafer					7	IP67
	K	Clamp					8	IP68(Remote Type Only)
[3]	Flange Rating					[11]	Power Supply
	06	0.6MPa (700...2400)					-A	(85-265)VAC/(45-63)Hz
	10	1.0MPa (200...1200)					-D	(9-32)VDC
	16	1.6MPa (10...600)					-B	3.6VDC lithium battery
	20	ANSI 150 (15...600)					-C	3.6VDC lithium battery +(85-265)VAC/(45-63)Hz
	25	2.5MPa (10...600)
	40	4.0MPa (10...150)					-F	3.6VDC lithium battery +(9-32)VDC
	50	ANSI 300 (15...600)
	99	Special				[12]	Output and Input
[4]	Flange and Shell Material						B	Basic Configuration (current, pulse and contact outputs)
	0	Carbon steel
	4	304 Stainless Steel					M	Basic Configuration+MODBUS
	6	316 Stainless Steel					H	Basic Configuration+HART
	9	Special					P	Basic Configuration+Profibus-DP
[5]	Lining Material					[13]	Calibration Specification
	1	Soft Neoprene (≤2400)					1	3 point, 0.5% accuracy
	2	Hard Neoprene (≤2400)					2	3 point, 0.2% accuracy
	3	PTFE (≤2400)					3	5 point, 0.5% accuracy
	4	Polyurethane (≤300)					T	Other
	5	PFA (≤250)				[14]	Special Functions
	6	F46 (≤250)					/B	None
	7	Ceramics (≤250)					/T	Power off timer
	8	ETFE (≤600)					/Q	Quantitative control
	9	Nylon (≤2400，Insertion type only)					/H	Hourly accumulation
[6]	Electrode Material						/J	Relay output
	1	316L Stainless Steel					/S	High frequency slurry
	2	Hastelloy C-22					/G	GPRS
	3	Hastelloy B-10					/N	NB-IoT
	4	titanium					/L	Ultra-low temperature
	5	tantalum					/P	Pressure sensor
	6	platinum/iridium Alloy					/K	RTD
	7	Tungsten Coated Stainless Steel					/C	Conductivity Sensor
	8	Ceramic
E.G.	Ordering Code: AEMG-300I10491-0AC5-AMT/B
	A+K electromagnetic flowmeter; DN300, Insertion type, 1.0MPa, 304 Stainless steel flange and shell, Nylon lining, 316L stainless steel electrode; Body grounding, Max. Process Temperaturee≤80℃, Compact–sensor/transmitter, Ingress Protection Class IP65; AC power supply, Basic configuration+MODBUS, 3 point, 2.5% accuracy.
