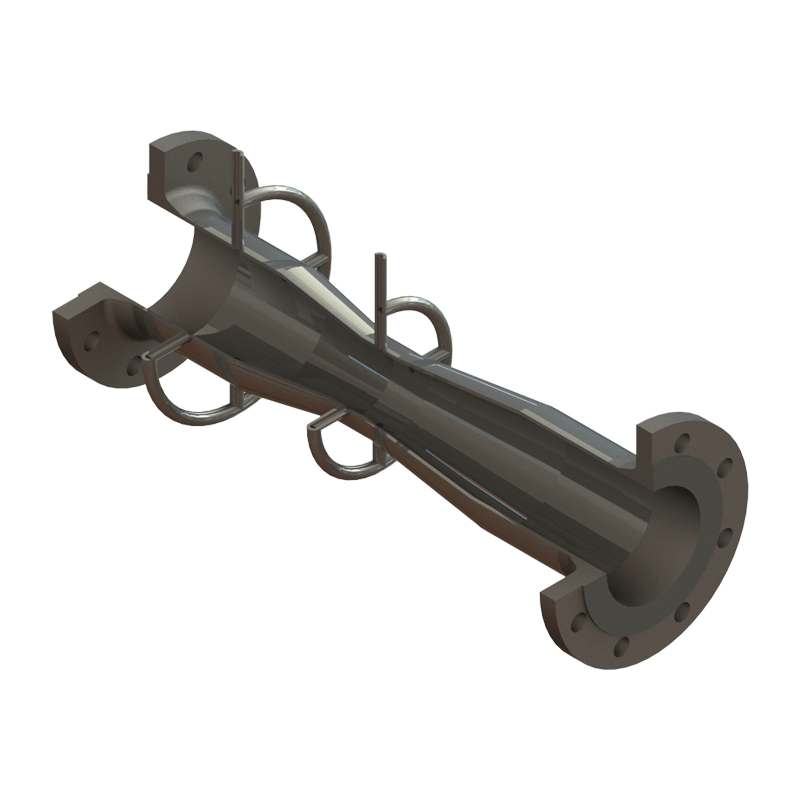

A+X venturi tubes are designed and manufactured in accordance with ISO 5167-4. It is mostly used for high accuracy measurement.

Standard specifications

●  Maintenance free - no moving parts

●  Mounted through any angle (vertical or horizontal)

●  Can be used to measure a variety of mediums

●  High-pressure recovery and low permanent pressure loss

●  Available in 2" to 60" sizes (larger sizes available upon request)

●  Meets all ISO 5167-4 industry specifications and tolerances

●  Short and long form (15° or 7° convergent cone) options

●  Machined convergent section or rough-welded sheet-iron convergent section versions available

●  Beta range:0.4≤ β ≤0.75

●  Reynolds number range: 2x10^5 ≤ ReD ≤ 2x10^6

●  Uncertainty:

Uncalibrated: machined venturi tube: 1%; plate welded venturi tube: 1.5%.

The calibrated uncertainty can reach ±0.5%

●  Repeatability: 0.15%

●  Operating temperature: -196≤ T ≤700°C

●  Working pressure: according to ANSI and DIN

●  Flange standard pressure tapping specifications:

1/2 " NPT or PSW

2" or 1" flanged tapping

●  Standard material: 304, 316, 321

●  Customized materials: Hastelloy C-276, Monel 400, Inconel, more available upon request.

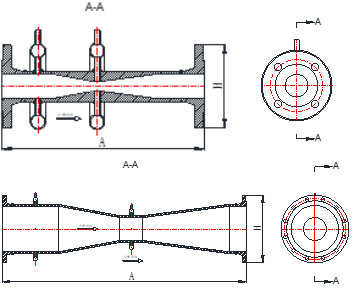

AVPP Flanged Type

●  The piped type classic venturi flowmeter is designed and manufactured according to ISO5167/GB2624, with flange connection for easy installation and maintenance on site.

●  International standard design, easy to calibrate and calculate.

●  Flange connection, easy installation and maintenance.

●  Permanent pressure loss is small.

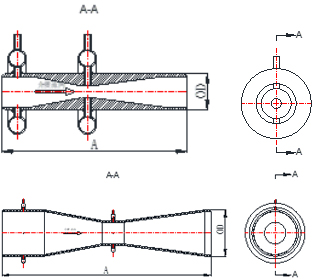

AVFW Welded Type

●  The venturi flow meter and the process pipe are welded, the installation will prevent leakage.

●  Pipe welded, save installation materials.

●  Save the weight of the flow meter itself.
